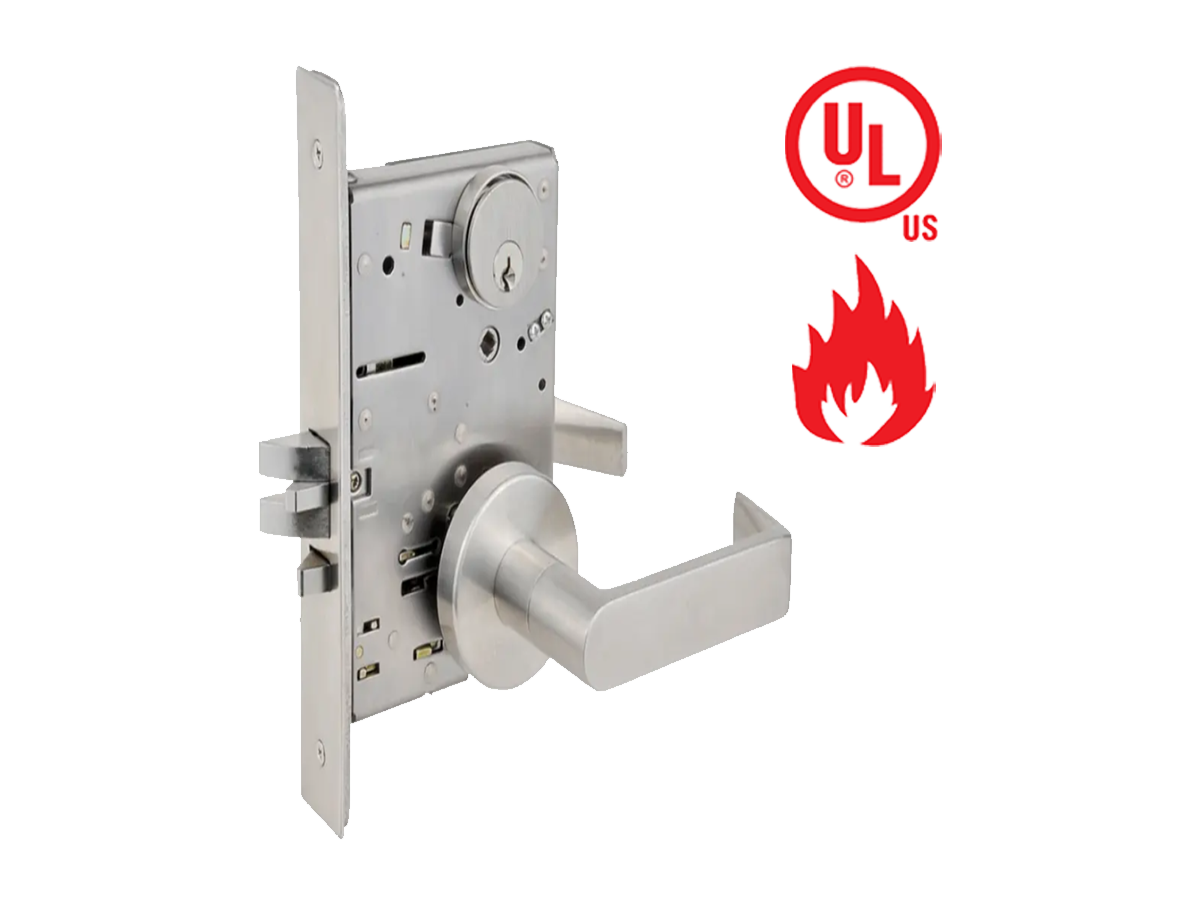

F05 Classroom function
Includes:1 pc F05 Classroom lockbody-DDAL05
1 pair Solid lever handle
1pc DDLC011 6 pins 1-1/8"(28.5mm) brass cylinder in Shclage "C" keyway with 1 pc
DDAT003 Cover ring with 3 Brass keys-Keyed to differ,non master system
Size:Backset 2-3/4”(70mm),Distance 3-5/8"(92mm)
Material:SUS304 Forend,Follower,Latch bolt(3/4 inch),Auxiliary bolt
Finish:Satin finish(US 32D/630)
Follower size:8*8mm
For door thickness:1-3/4”(45mm) standard
Accessories:SUS304 Strike plate, plastic strike box,wooden screws or metal screws
UL10C 3 hours Fire rated
Produce to comply to standard ANSI/BHMA A156.13 Grade 1
