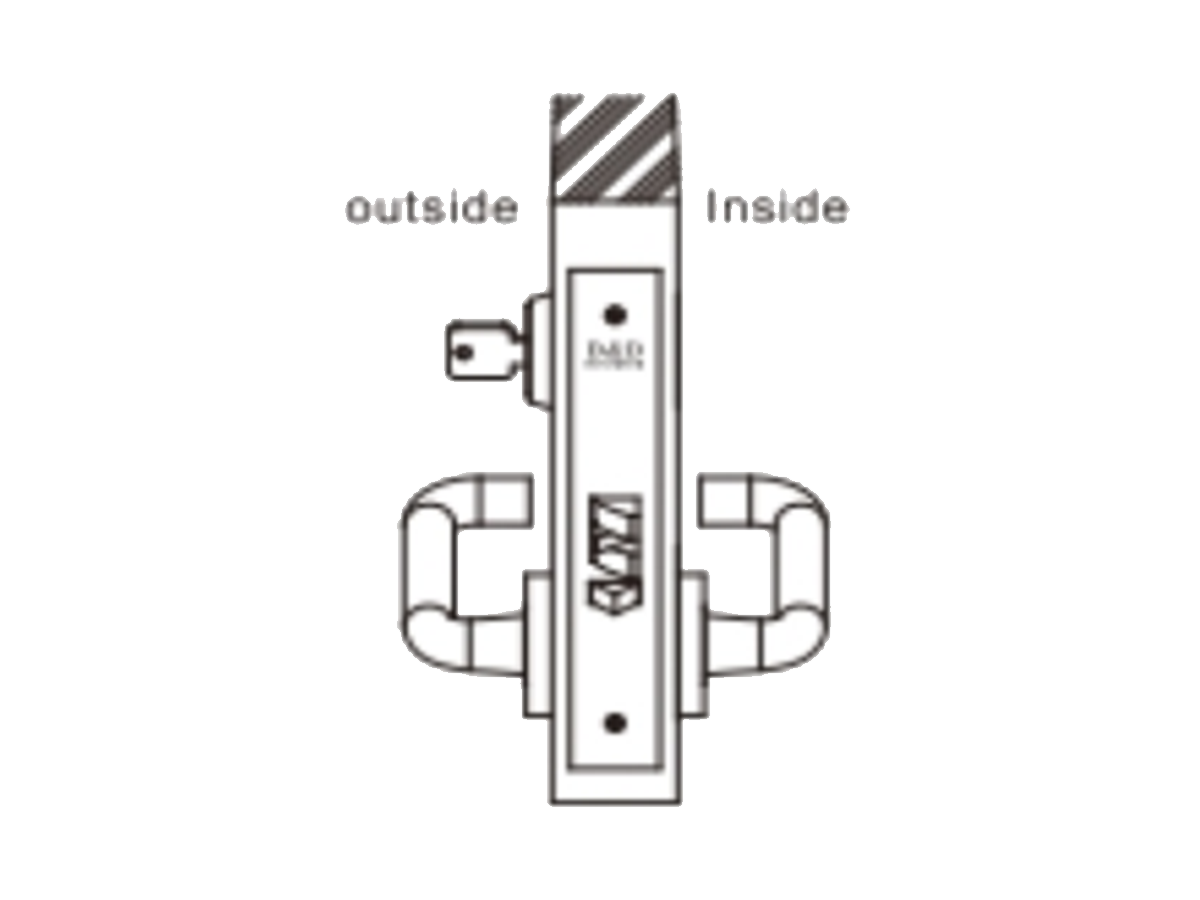

F05 Classroom function
Includes:1 pc F05 Classroom lockbody-DDAL05
1 pair Solid lever handle
1pc MTA-DDLC011 6 pins 1-1/8"(28.5mm) brass cylinder in Schlage "C" keyway with 1 pc MTA-DDAT003 Cover ring with 3 Brass Keys-Keyed to differ, non-master system
Size: Backset 2-3/4” (70mm), Distance 3-5/8"(92mm)
Material: SUS304 For end, Follower, Latch bolt (3/4 inch), Auxiliary bolt
Finish: Satin finish (US 32D/630)
Follower size:8*8mm
For door thickness:1-3/4” (45mm) standard
Accessories: SUS304 Strike plate, plastic strike box, wooden screws or metal screws
UL10C 3 hours Fire rated
Produce to comply to standard ANSI/BHMA A156.13 Grade 1
