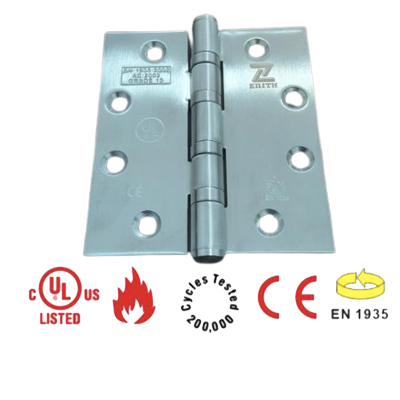

ZENITH 4.5”×4.0”×3.0mm-4BB CE marked and UL listed Fire rated Stainless Steel Ball Bearing Door Hinge (MTA-SS002-FR)

Size: 4.5”×4.0”×3.0mm-4BB
Fix Pin, 5 knuckles - Ø 14.2mm
Material: SUS304
Screws in total 8 pcs - optional in Wood screws or Machine screws
Finish: Satin finish (US 32D/630)
Holes pattern: Template holes - “C” shape
CE EN 1935 Grade 13, pass 200,000 cycles test at 120KG, CE marked
EN 1634 fire rated, 192 mins Timber composite door, 260mins Steel door
UL/cUL10C Listed - 3 hours Fire-rated certified, file No. R38013;
