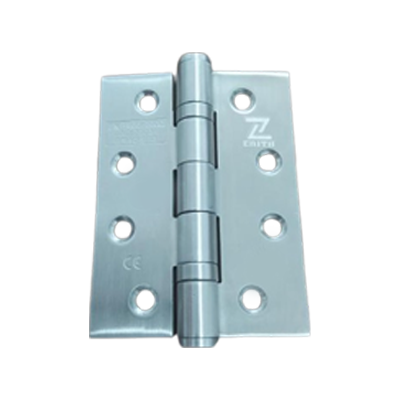

Size: 4.0”×3.0”×3.0mm-2BB
Fix Pin: 5 knuckles – Ø 14.2mm
Material: SUS304 Leaves + SUS201 fittings
Fittings include: End cap, Shaft pin, Ball bearing, Screws
Screws: in total 8 pcs – optional in Wood screws or Machine screws
Finish: Satin finish (US 32D/630)
Holes pattern: Template holes – “C” shape
CE EN 1935 Grade 13, pass 200,000 cycles test at 120Kg. CE marked
