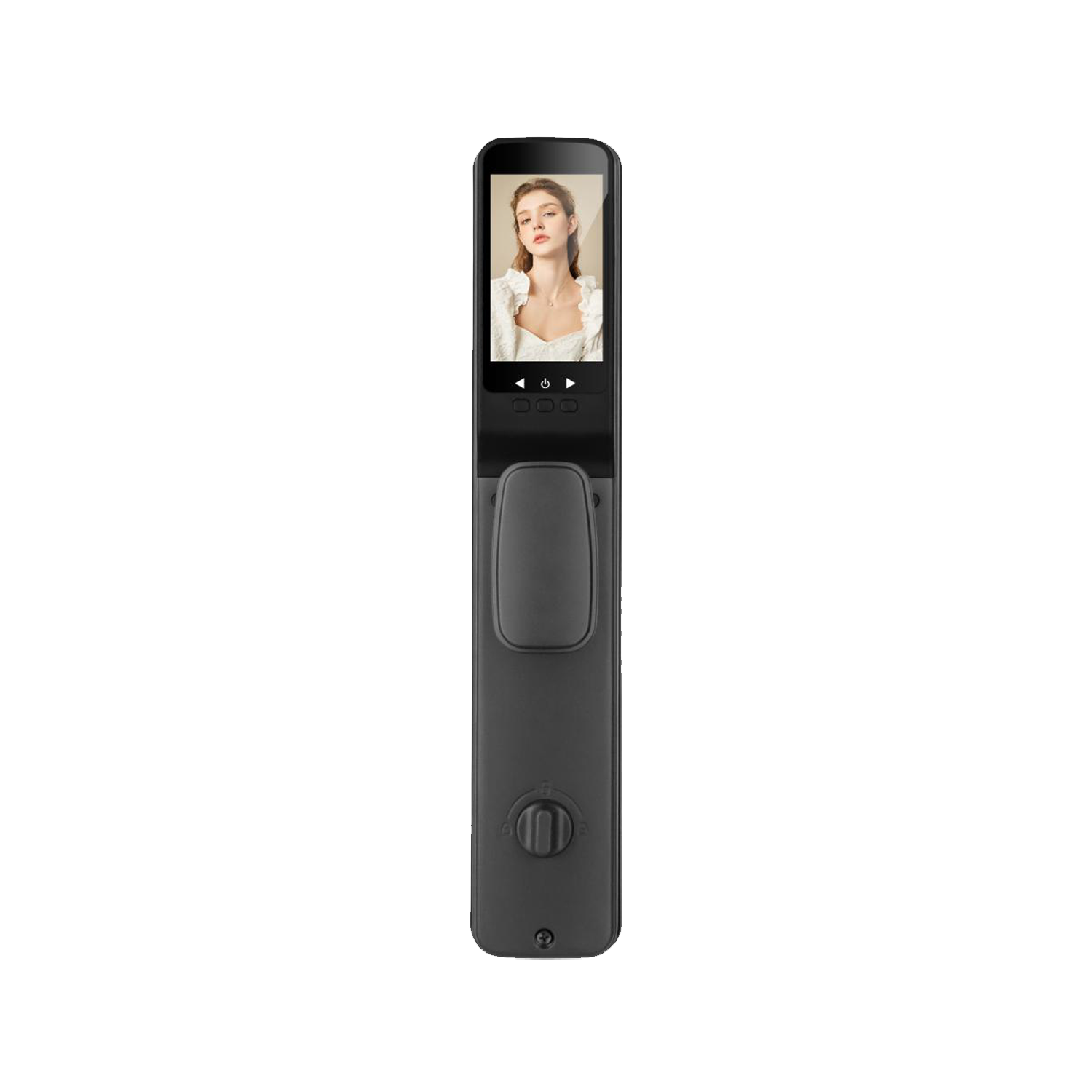

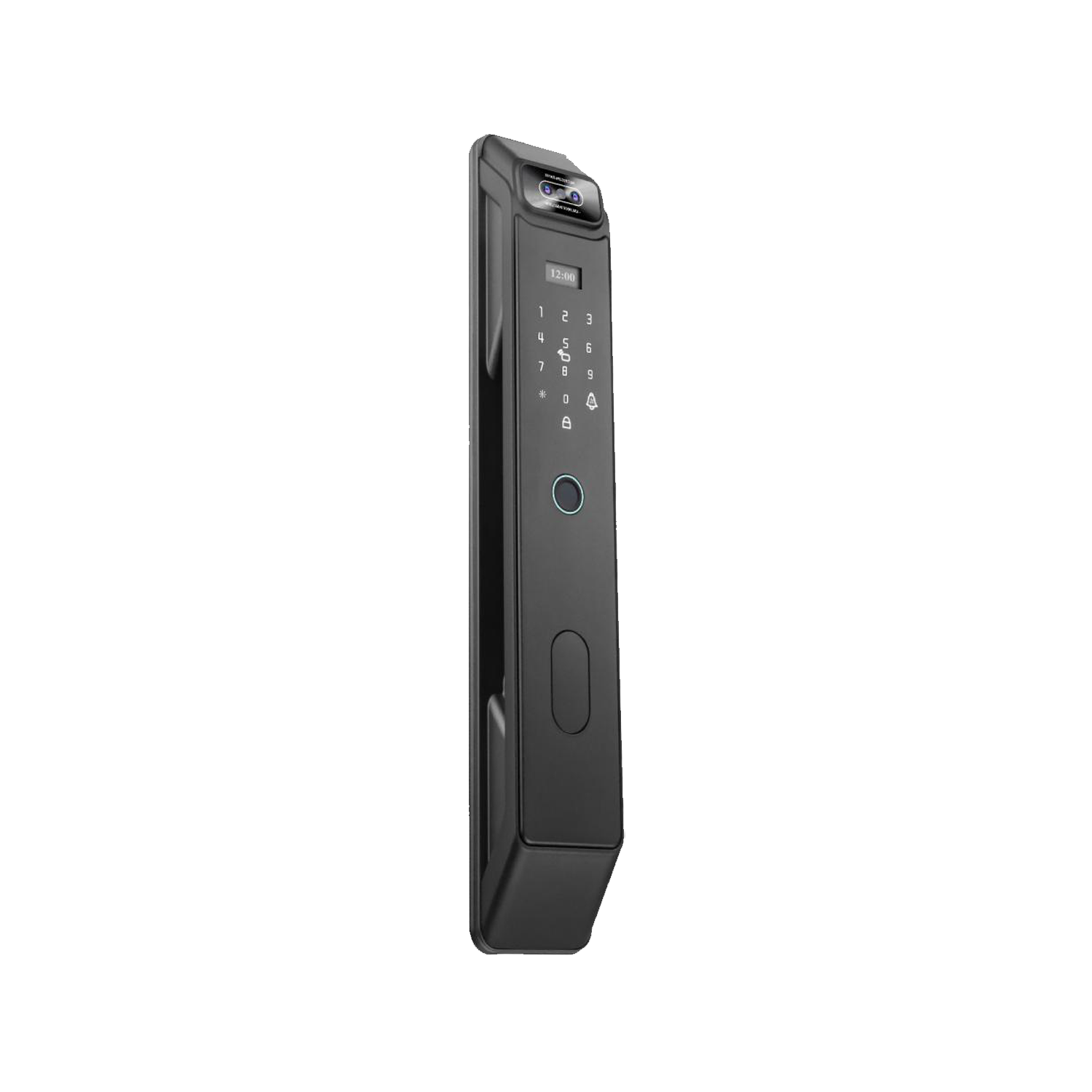

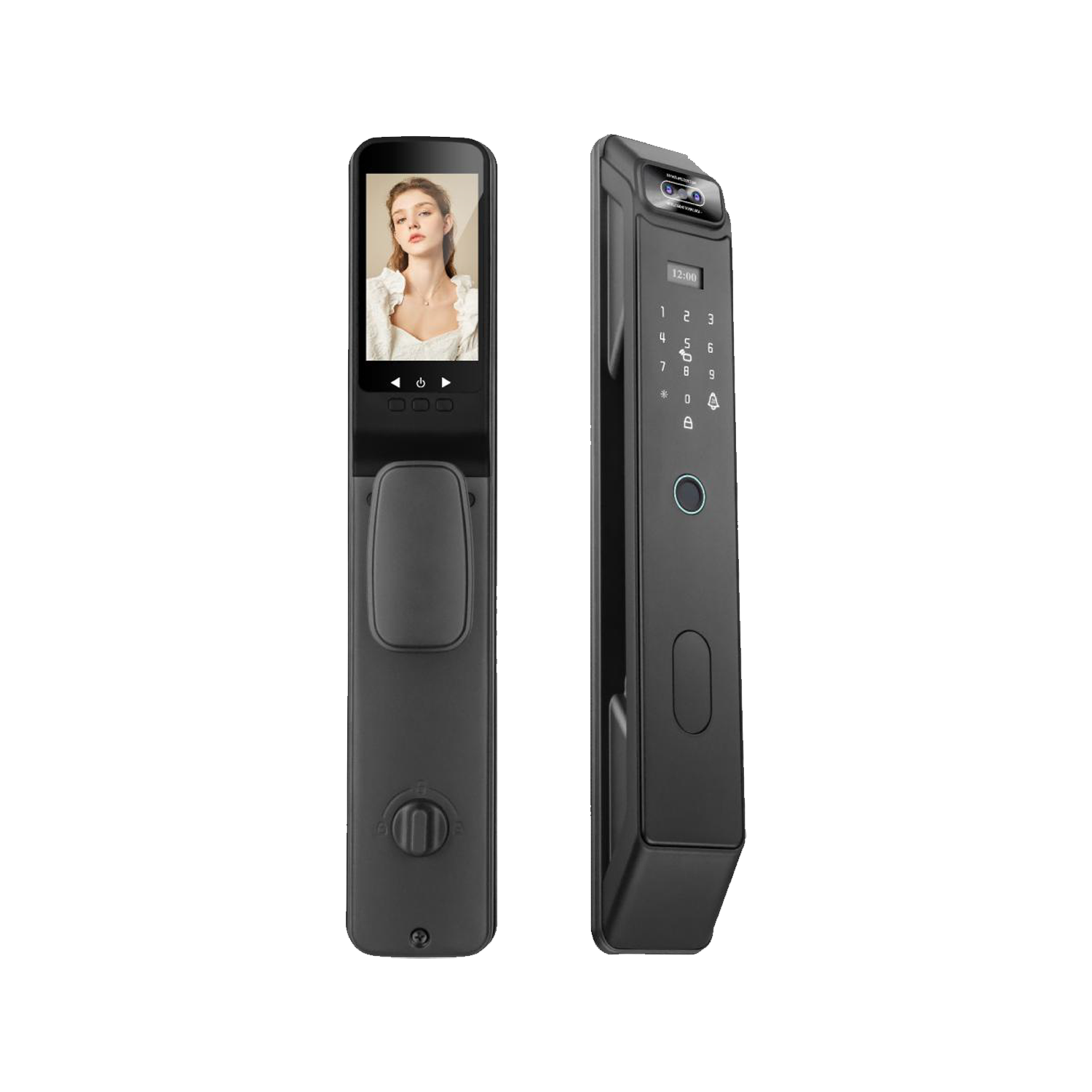

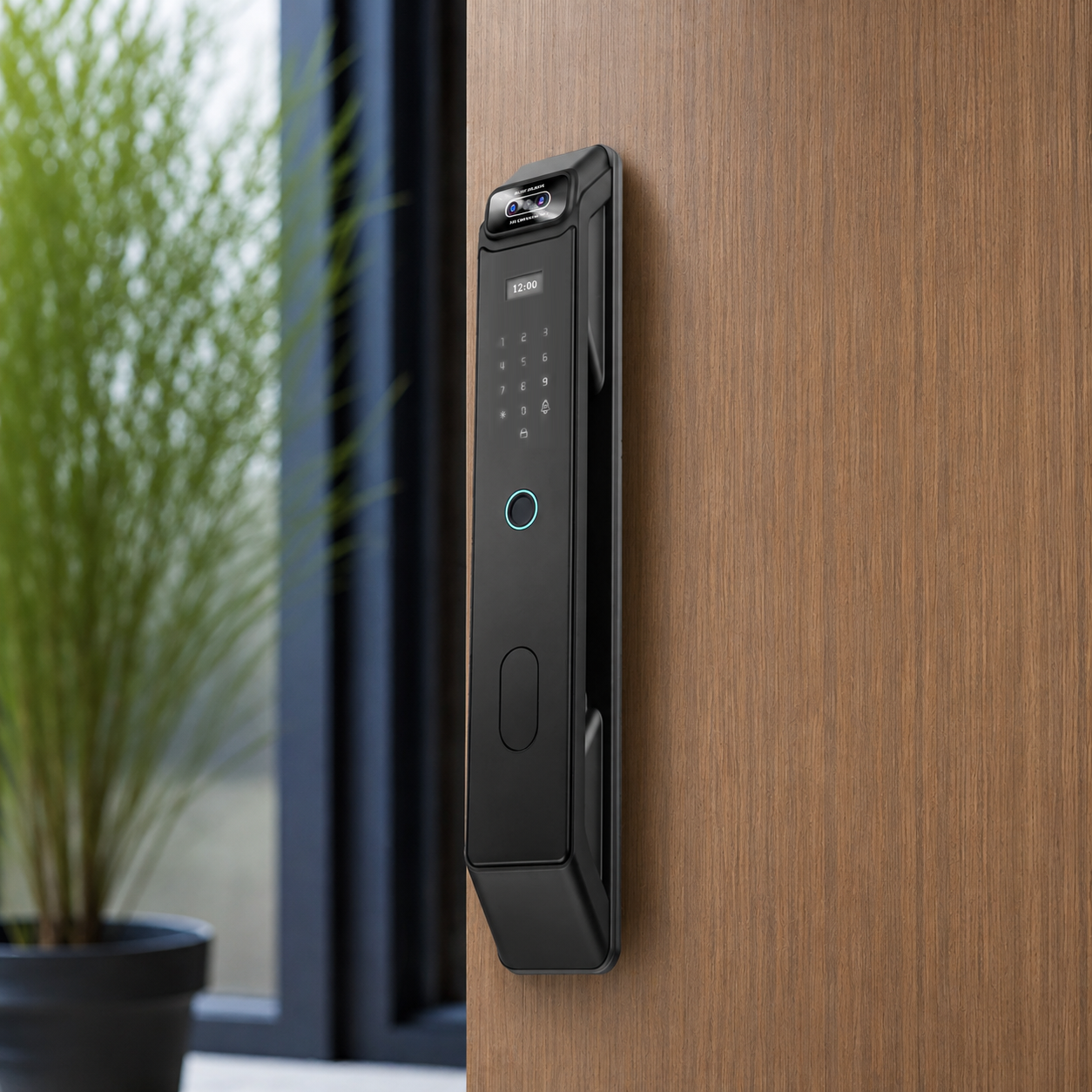

Zenith Y03 Smart Door Lock — Fully Automatic Smart Security for Entrance Doors
The Zenith Y03 Smart Door Lock is a fully automatic smart locking solution designed for entrance doors. Featuring a sleek Black finish and an Aluminium Alloy body, panel, and handle, the Y03 combines multiple biometric and digital access methods with automatic locking and remote management for modern residential and commercial applications.
Advanced Tuya Smart & Remote Access
The Y03 supports Face Recognition, Fingerprint, Pass-code, RFID Card, Mechanical Key, and the Tuya Smart / Smart Life App. Remote unlocking through 2.4GHz Wi-Fi allows users to manage access remotely, while Temporary, One-time, Recurring, and Dynamic Passwords provide flexible access control for different users and situations.
High-Capacity Smart Access & Automatic Security
Designed for convenient daily use, the Y03 supports up to 76 fingerprint users, 100 password sets, 100 RFID cards, and 50 face users, with an unlock speed of approximately 0.5 seconds. Features include Auto Lock, Auto Deadlock, Anti-peeping Password, Fake PIN Code, Wrong Password Alarm, Tamper Alarm, Passage Mode, Dual Verification, Silent Mode, Remote Unlock, and Unlock Records.
Its IP67 rating, 4,200mAh Lithium Battery, Type-C charging, Micro USB emergency power, and low-battery alarm provide practical performance for outdoor entrance-door installations. The lock supports wooden, steel, and other types of entrance doors with 40–120 mm door thickness, a 6068 full steel mortise, and reversible opening direction.
Product Specifications
Model: Y03
Product Name: Fully Automatic Smart Lock
Brand: Zenith
Product Series: Smart Lock for Entrance Door
Material: Aluminium Alloy
Panel Material: Aluminium Alloy
Handle Material: Aluminium Alloy
Mortise Material: Stainless Steel
Cylinder Material: Brass
Color: Black
Surface Finish: Spraying
Door Type: Wooden Door / Steel Door / Other Entrance Doors
Door Thickness Support: 40–120 mm
Mortise: 6068 Full Steel Mortise
Back-set: 60 mm
Center Distance: 68 mm
Opening Direction: Reversible
Network: Wi-Fi 2.4GHz
Smart App: Tuya Smart / Smart Life
Unlock Methods: Face Recognition, Fingerprint, Pass-code, RFID Card, Mechanical Key, Mobile App
Additional Features: Auto Lock, Auto Deadlock, Temporary Password, One-time Password, Recurring Password, Dynamic Password, Remote Unlock, Unlock Records, User Management, Dual Verification, Silent Mode
Battery: 4,200mAh Lithium Battery
Charging: Type-C Charging
Emergency Power: Micro USB
Fingerprint Capacity: 76 Users
Password Capacity: 100 Sets
RFID Card Capacity: 100 Cards
Face Capacity: 50 Users
Unlock Speed: 0.5 s
IP Rating: IP67
Standby Time: 12 Months
Working Temperature: -10–60°C
Working Humidity: 20–93% RH
Front Panel: 412 × 74 mm
Rear Panel: 412 × 74 mm
Gross Weight: 3 kg (mortise + 0.85 kg)
Installation Environment: Outdoor
Recommended Use: Entrance doors, residential properties, commercial spaces, wooden doors, steel doors, and other suitable entrance-door applications.
