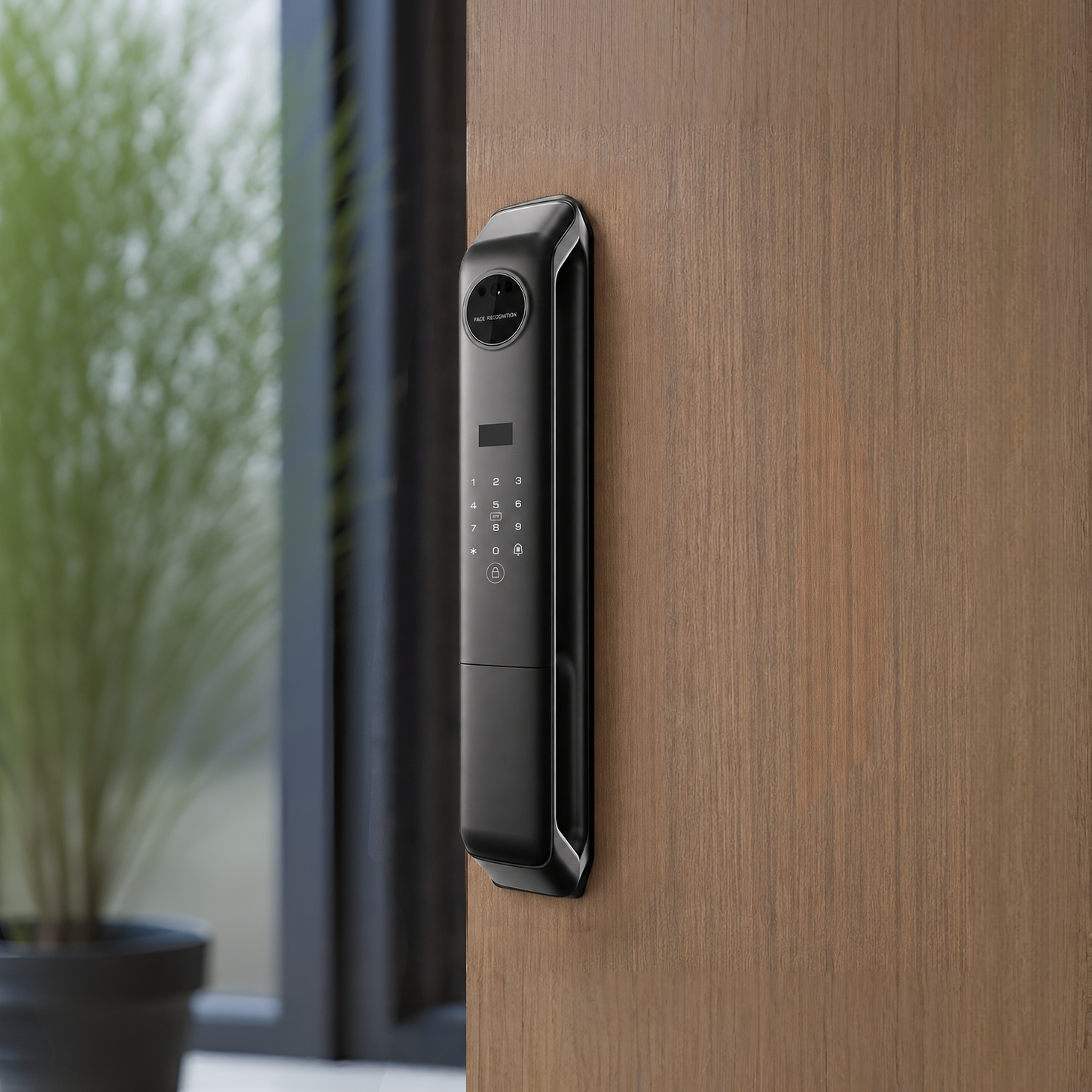

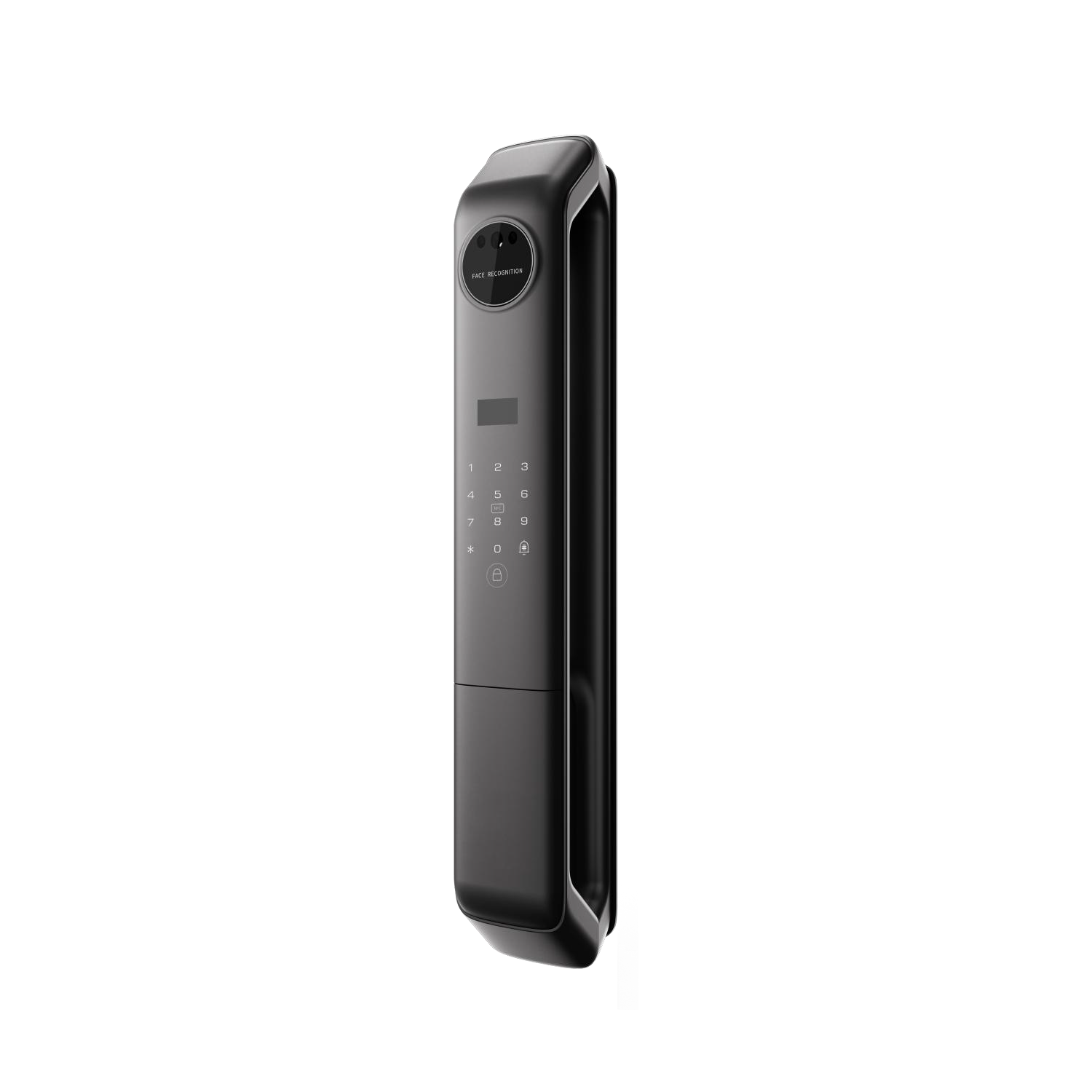

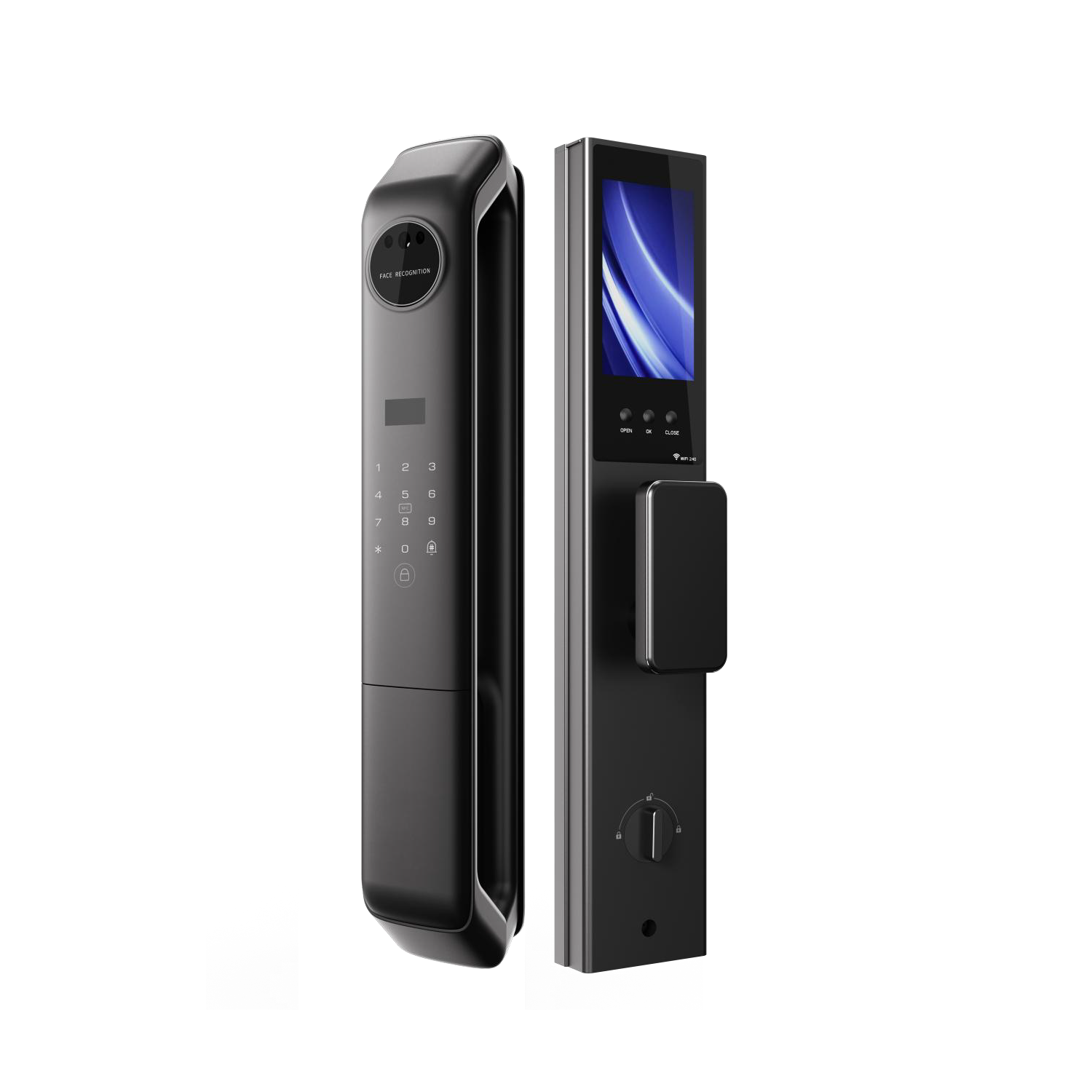

Zenith Y02 Smart Door Lock — Advanced Facial Recognition and Palm Vein Smart Security
The Zenith Y02 Smart Door Lock combines advanced biometric access with a modern smart door lock design. Finished in Gray and built from Aluminium Alloy using die-casting construction, the Y02 provides multiple unlocking options including Face Recognition, Palm Vein, Password, IC Card, Mechanical Key, Temporary Password, and Remote Unlock.
Advanced Face & Palm Vein Recognition
The Y02 features a 3-in-1 AI Palm Vein module with Face & Palm Vein registration capacity for up to 100 users, along with fingerprint support for 50 users, IC Card capacity for 100 users, and up to 100 password groups. Its 13-digit Touch Keypad supports 6–9 digit passwords and Virtual/Fake Password functionality for added privacy.
Smart Peephole and Remote Access

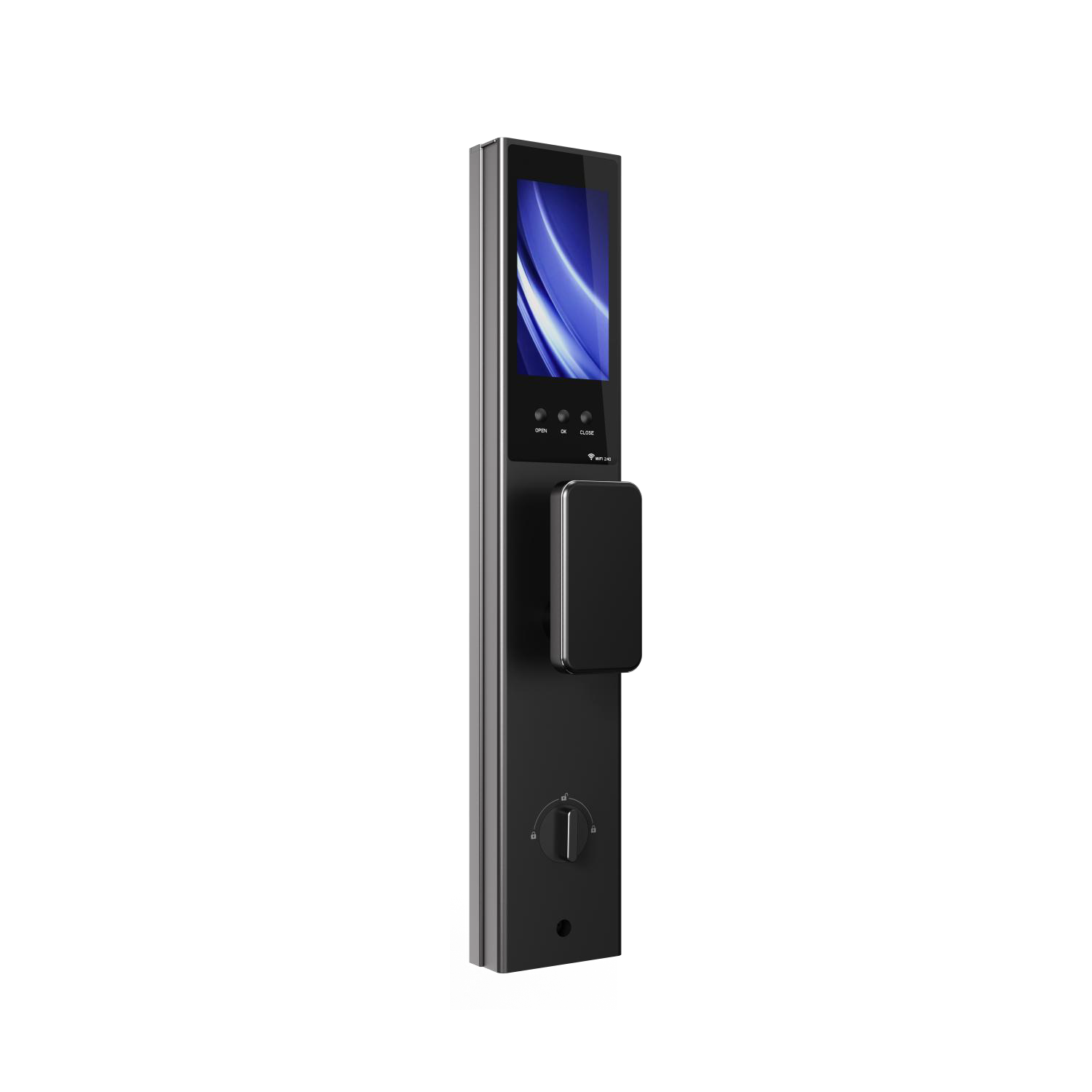

The Y02 incorporates a 4.5-inch smart peephole display with 480 × 800 resolution and a 1.0 MP camera featuring a 128.9° field of view. Remote unlocking is supported through the Tuya App, while the smart peephole provides an integrated viewing solution for the door.
With Auto-Lock, Quick-Open Function, Anti-Pry Alarm, Passage Mode, and 512 circular unlock records, the Y02 is designed for convenient and secure everyday access. Its 4,200mAh Lithium Battery supports operation, with Mechanical Key and Emergency Power Supply available for backup access.
Product Specifications
Model: Y02
Brand: Zenith
Material: Aluminium Alloy
Processing: Die-Casting
Color: Gray
Door Opening Direction: Default Right-Open; Reversible Left & Right Adjustable
Unlock Methods: Face Recognition, Palm Vein, Password, IC Card, Mechanical Key, Temporary Password, Remote Unlock
Network / App: Tuya App
Face & Palm Vein Capacity: 100 Users
Fingerprint Capacity: 50 Users
IC Card Capacity: 100 Users
Password Capacity: 100 Groups
Password Length: 6–9 Digits
Card Type: M1 Card
Keypad: 13-Digit Touch Keypad
Unlock Records: 512 Circular Logs
Battery: 4,200mAh Lithium Battery
Auxiliary Power: DC 5V Type-C Interface
Emergency Backup: Mechanical Key + Emergency Power Supply
Emergency Power Supply: 5V2A
Working Voltage: 6.9–8V
Working Temperature: -25°C to +70°C
Working Humidity: 20–93%
Static Current: ≤150μA
Dynamic Current: ≤5A
Motor: Dongshunda DC Motor
False Rejection Rate: <5%
False Acceptance Rate: <0.001%
Mortise Type: Mechanical Mortise
Mortise Standard: Chinese Standard
Mortise Center Distance (PZ): 68mm
Backset: 60mm
Cylinder: Class C Anti-Theft Lock Cylinder
Faceplate Size: 24 × 240mm
Front Panel: 420 × 78mm
Rear Panel: 420 × 78mm
Smart Peephole: Yes
Peephole Display: 4.5 inches
Display Resolution: 480 × 800
Camera Resolution: 1.0 MP
Camera Field of View: 128.9°
Remote Unlock: Supported
Auto-Lock: Yes
Quick-Open Function: Yes
Anti-Pry Alarm: Yes
Passage Mode: Supported
Fake Password: Supported
Recommended Use: Residential and entrance-door applications requiring biometric access, smart remote unlocking, and integrated smart peephole functionality.
