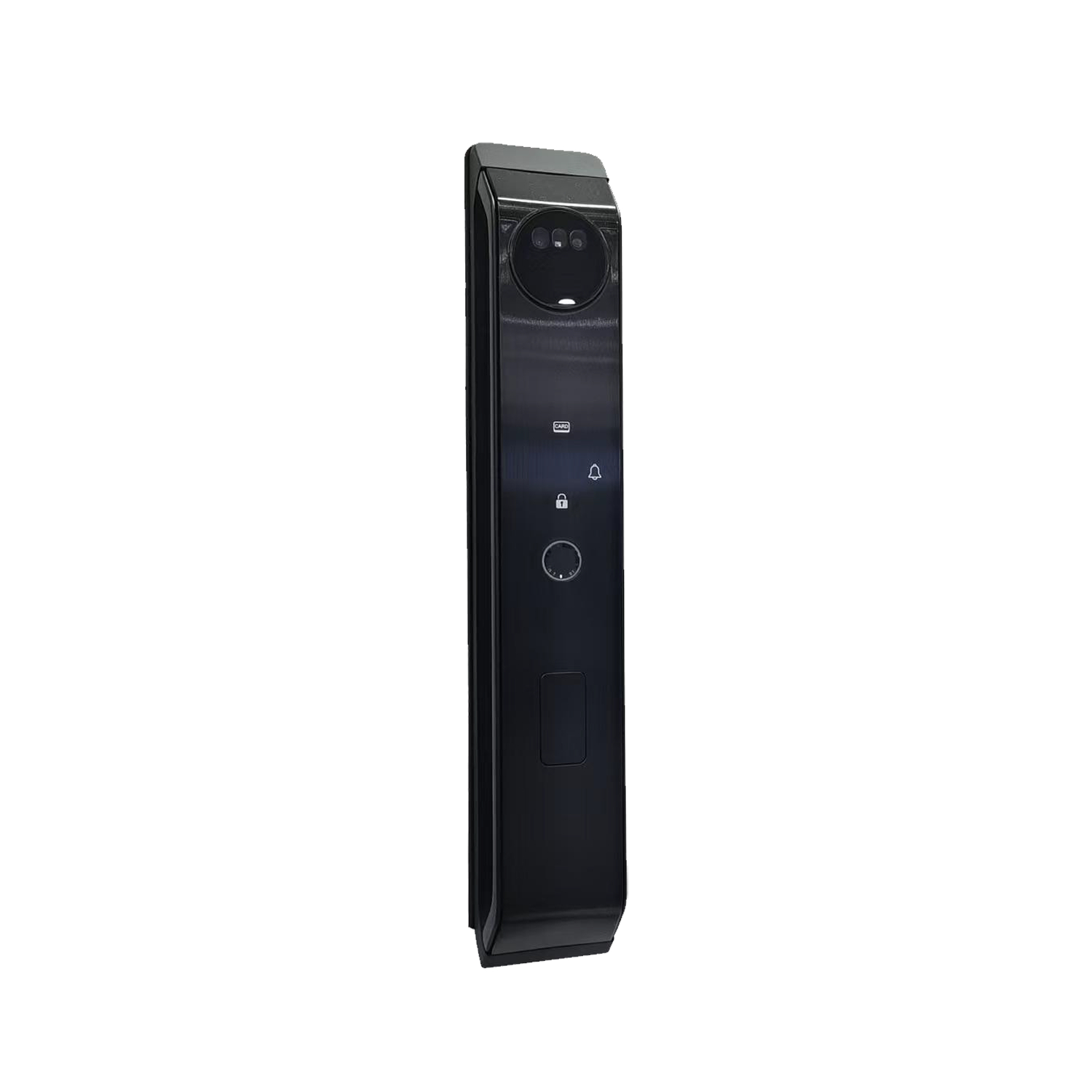

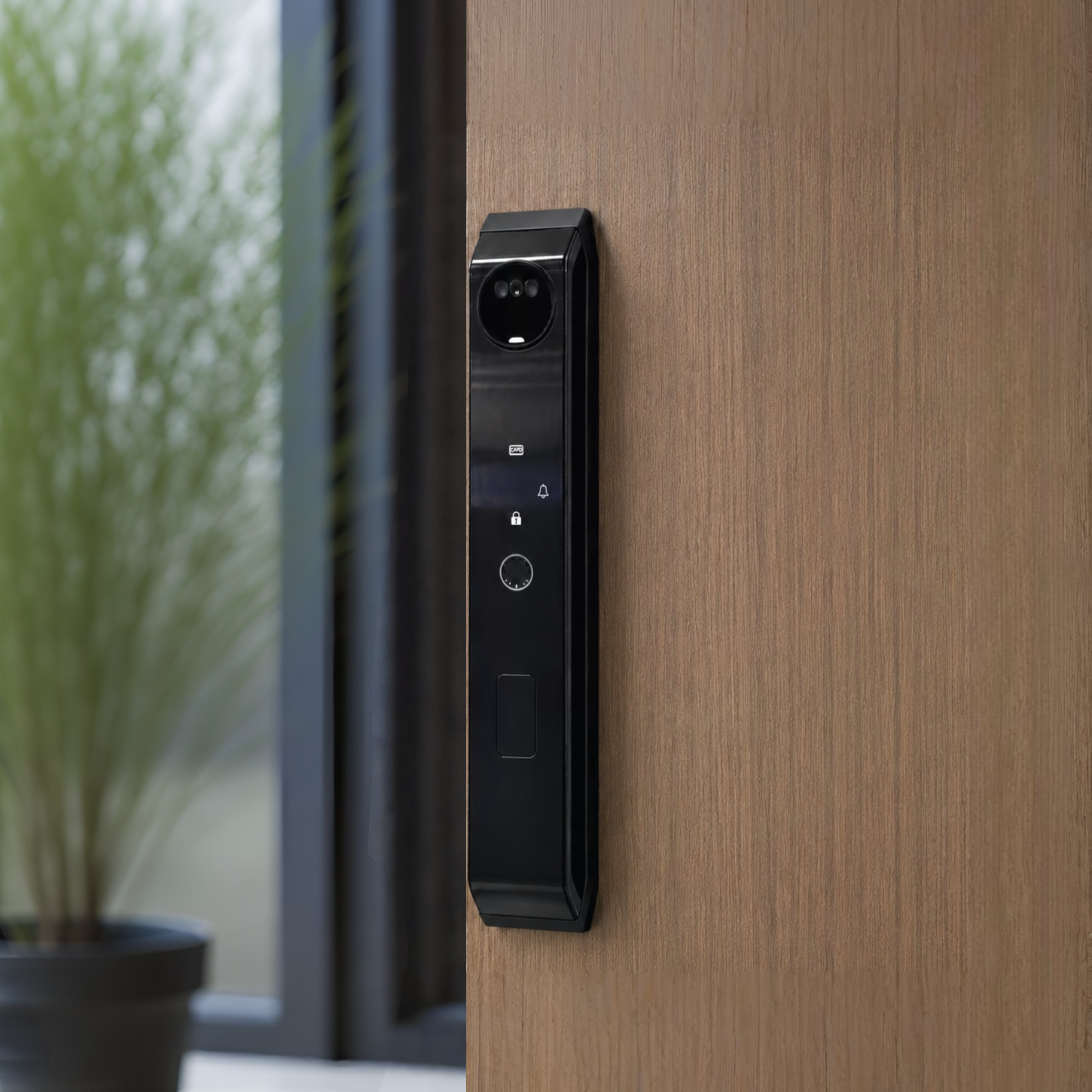

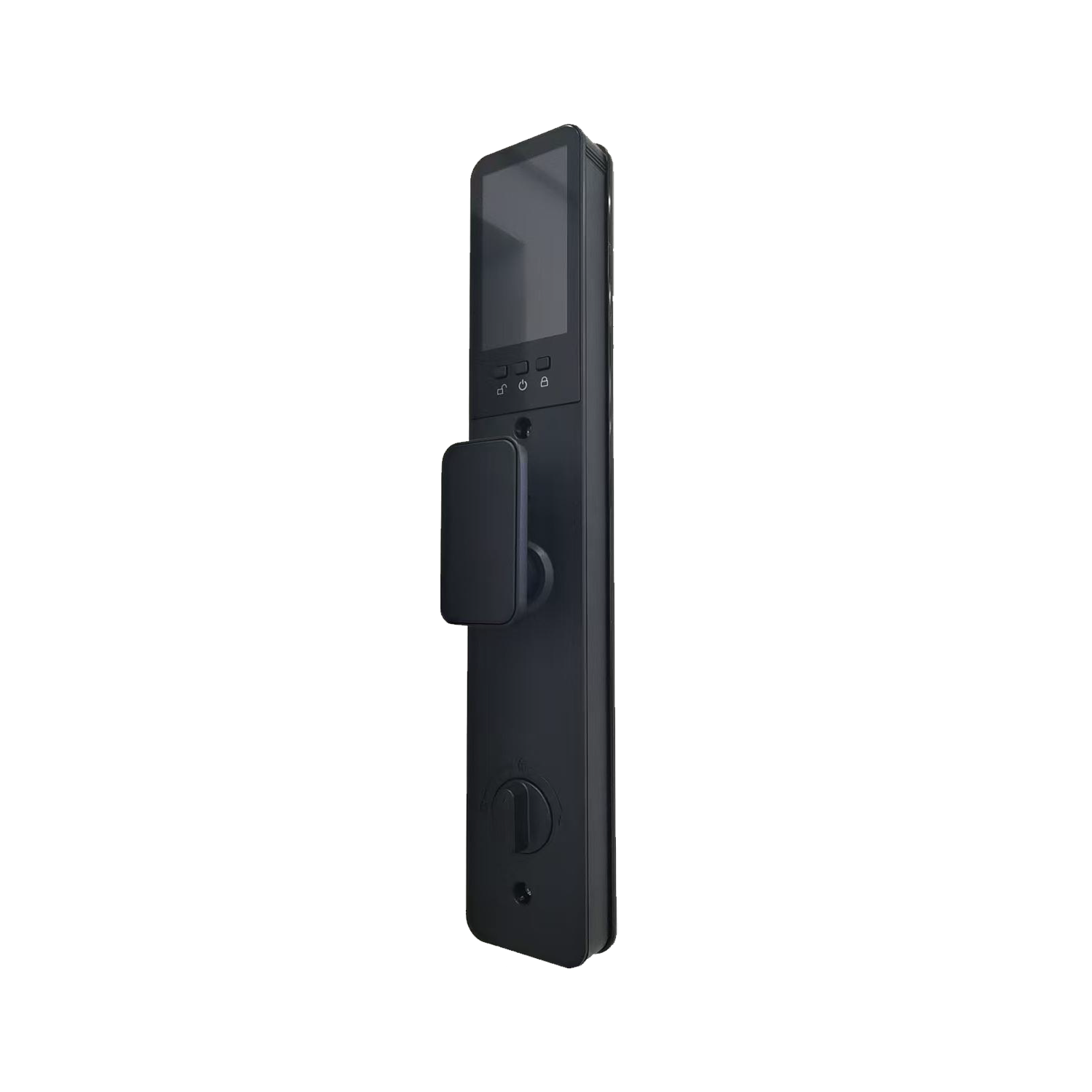

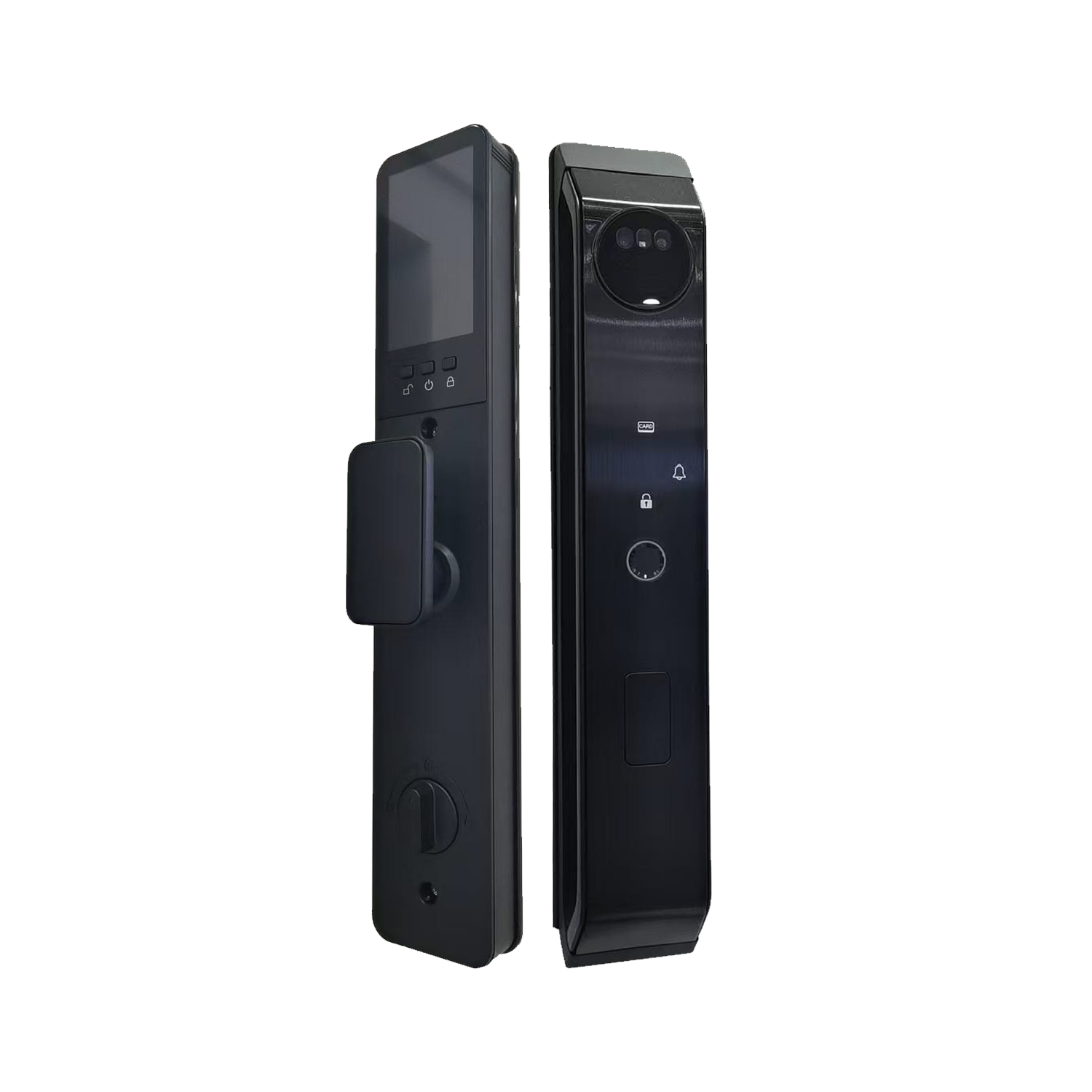

Zenith Y01 Smart Door Lock — 3D Face & Palm Vein Recognition with Smart Peephole
The Zenith Y01 Smart Door Lock combines advanced biometric access control with an integrated smart peephole and video intercom system. Designed for wooden, security, stainless steel, and copper doors with thicknesses from 45–120 mm, the Y01 features an alloy steel and tempered glass front panel, alloy steel rear panel, and corrosion-resistant powder-coated construction.
Advanced 3D Face & Palm Vein Recognition
The Y01 supports Face Recognition, Palm Vein, Fingerprint, Password, Temporary Password, Virtual Password, IC Card, and Remote App Unlock. Its 3D biometric module provides liveness detection designed to help prevent spoofing using photos, videos, and silicone masks. Face and palm recognition capacities are supported for up to 50 users each.
The lock supports up to 200 password groups, 50 fingerprint users, and 200 IC card users, with a total capacity of 200 users. Virtual Password protection and trial-error lockout provide additional security during password entry.
Smart Peephole, Remote Access & Video Intercom
Powered by the Tuya App, the Y01 supports remote mobile app unlocking and WeChat mini-program unlocking. Its active and passive video intercom functionality provides additional door-monitoring capability, while the integrated smart peephole solution enhances the overall entrance-door experience.
The Y01 also features Auto-Locking, One-Touch Deadbolt, Anti-Peep Deadlock, Anti-Peep Virtual Password, Low Battery Alarm, Tamper Alarm, Malfunction Alarm, and Trial-Error Lockout Alarm. It operates on a Lithium Battery with 5V Micro-Type-C emergency power.
Product Specifications
Model: Y01
Brand: Zenith
Front Panel: Alloy Steel + Tempered Glass
Rear Panel: Alloy Steel
Rear Handle: Aluminum Alloy
Knob: PC + ABS
Front Panel Size: 425 × 72.5 × 62.5 mm
Rear Panel Size: 425 × 77.5 × 65.8 mm
Rear Handle Size: 89 × 48 × 40 mm
Processing: Powder Coating, Anti-Oxidation & Corrosion Resistant
Door Thickness Support: 45–120 mm
Applicable Door Type: Wooden Door, Security Door, Stainless Steel Door, Copper Door
Mortise: Universal 6068 Standard Mortise Compatible
Lock Cylinder: Stainless Steel Housing with Copper Core
Mechanical Key: Rubber-Handle Foldable Iron Key
Unlock Methods: Face Recognition, Palm Vein, Fingerprint, Password, Temporary Password, Virtual Password, IC Card, Remote App Unlock
Smart App: Tuya App
Password Capacity: 200 Groups
Fingerprint Capacity: 50 Users
Card Capacity: 200 Users
Face Capacity: 50 Users
Palm Vein Capacity: 50 Users
Password Length: 6–12 Digits
Card Type: ISO 14443A Type M1 Card
Battery: Lithium Battery
Emergency Power: 5V Micro-Type-C
Working Voltage: DC 7.4V
Working Temperature: -25°C to 70°C
Working Humidity: 15%–95%
FAR: <0.0001% (1 PPM)
FRR: <1%
Face Recognition Speed: <1 Second
Face Recognition Distance: 0.4–1 m
Palm Recognition Speed: <1 Second
Palm Recognition Distance: 10–20 cm
Recognition: 3D Face & Near-Infrared Palm Vein Recognition
Anti-Spoofing: Face and Palm Vein Liveness Detection
Network Features: Remote Mobile App Unlock, WeChat Mini-Program Unlock
Locking: Auto-Locking / One-Touch Deadbolt
Peephole: Active & Passive Video Intercom
Security Features: Anti-Peep Deadlock, Virtual Password, Trial-Error Lockout, Tamper Alarm, Malfunction Alarm, Low Battery Alarm
Compliant Standards / Certifications: GA 374-2019, GA/T 73-2015, GB 21556.2-2025
Recommended Use: Residential and entrance-door applications requiring biometric access, smart remote unlocking, video intercom, and enhanced door security.
