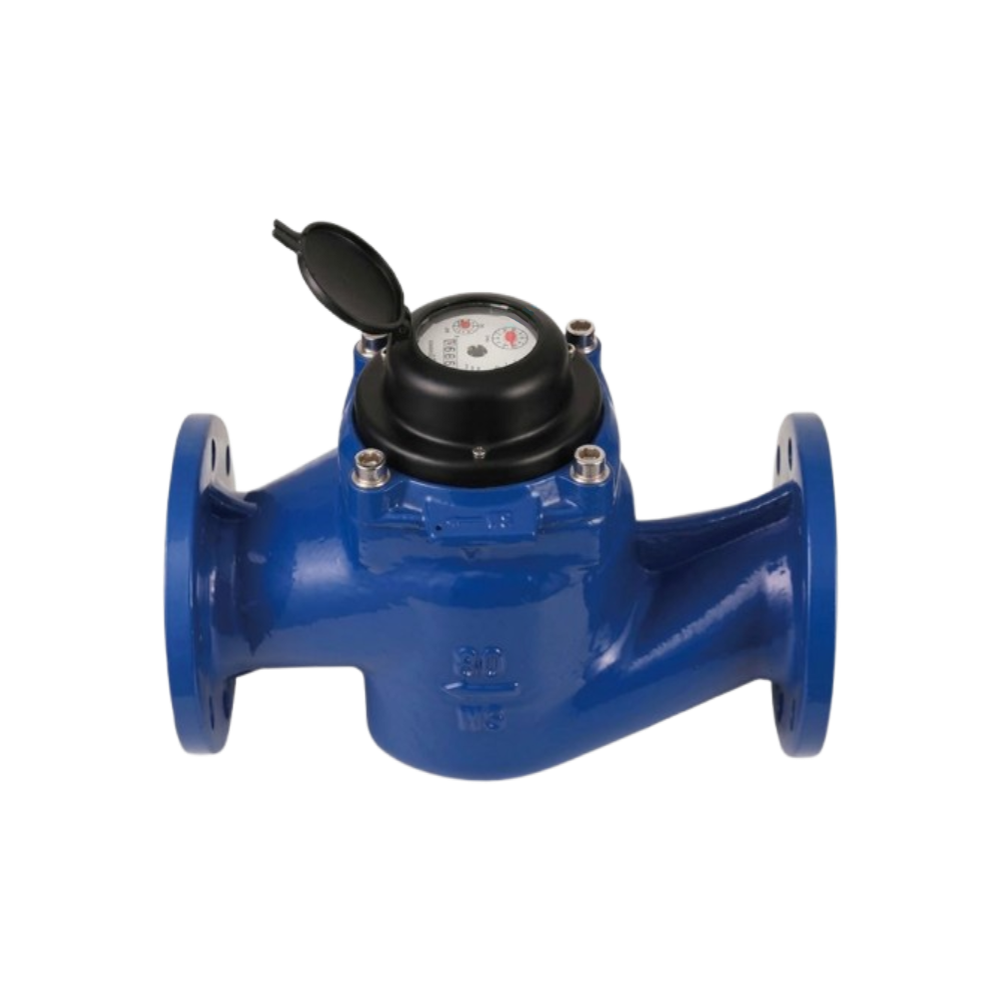

The Zenith Vertical Type Woltman Water Meter features a dry-dial design with magnetic drive and a copper-sealed register to prevent condensation and ensure clear, long-term readings. Its novel vertical structure allows for flexible installation in limited spaces, making it ideal for industrial, irrigation, and commercial applications with fluctuating water usage.
Constructed with an epoxy-coated cast iron body, this meter offers large flow capacity with minimal pressure loss. The measuring element is removable and interchangeable for easy maintenance, and it supports customization options like remote transmission devices for advanced monitoring. Specifications
Models: LXR-50
Nominal Size: DN50 (2")
Accuracy Class: R160 (R200/R250 optional)
Permanent Flow Rate (Q3): 25 m³/h (DN50)
Water Pressure: ≤1.0 MPa or 1.6 MPa
Temperature Class: T50 (Cold ≤50°C), T90 (Hot ≤90°C)
Reading Range: 0.001 - 999,999 m³
Installation Position: Vertical
Body Material: Epoxy coated cast iron
