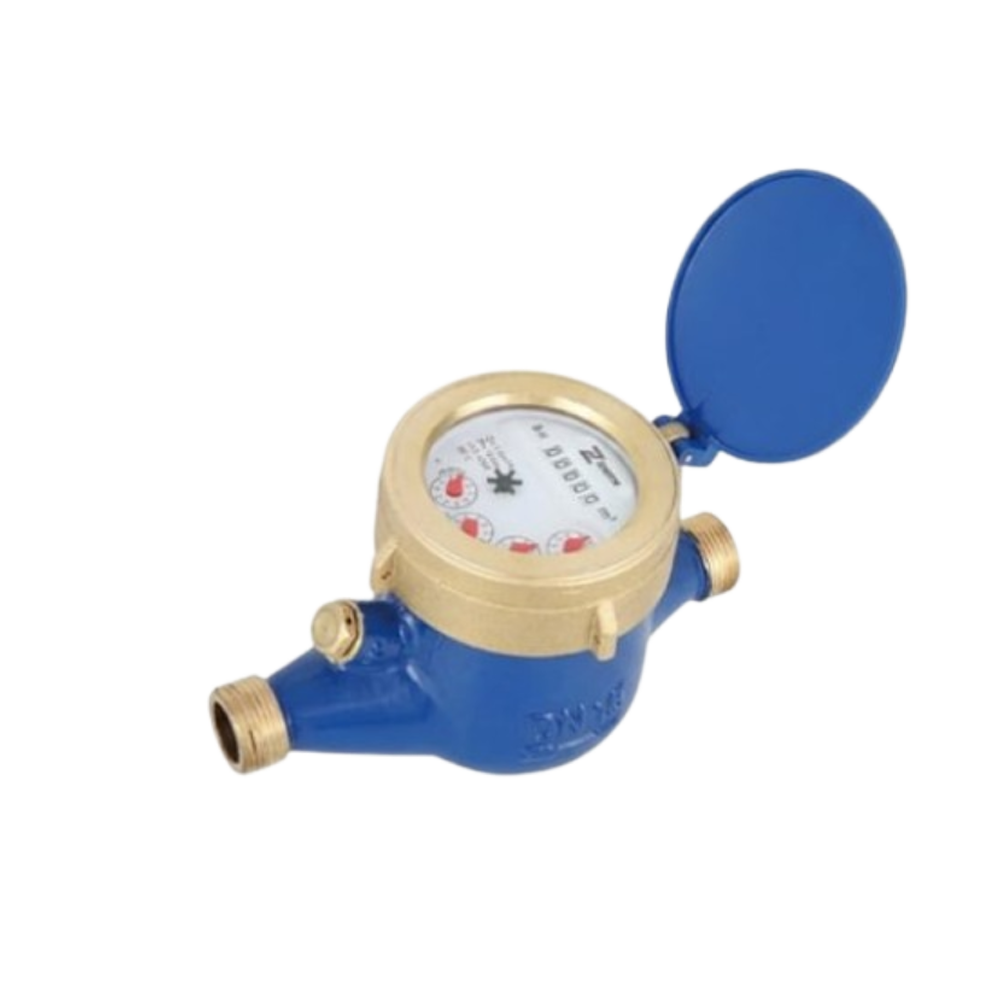

The Zenith Multi-Jet Wet Type Water Meter features a wet dial register construction that ensures excellent, highly stable readings and low start flow rates. Available in brass, plastic, cast iron, or stainless steel, it includes an inlet strainer for impurity resistance and a 360° rotating lid for easy viewing.
Designed for both cold and hot water applications, this meter supports flexible horizontal or vertical installation. It offers customizable accuracy classes (R100/R160) and an optional pulse output, making it a reliable, simple, and easy-to-maintain solution for household and commercial water measurement. Specifications
Models: LXS-15, LXS-20, LXS-25, LXS-40, LXS-50
Body Material: Brass, Nylon Plastic, Cast Iron, Stainless Steel
Permanent Flow Rate (Q3): 2.5 m³/h (DN15), 4.0 m³/h (DN20), 6.3 m³/h (DN25), 16 m³/h (DN40), 25 m³/h (DN50)
Accuracy Class: R80, R100, R160
Water Pressure: ≤1.0 MPa or 1.6 MPa
Temperature Class: T50 (Cold ≤50°C), T90 (Hot ≤90°C)
Installation Position: Horizontal / Vertical
Reading Range: 0.0001 - 99999 m³
Pulse Output: Optional
