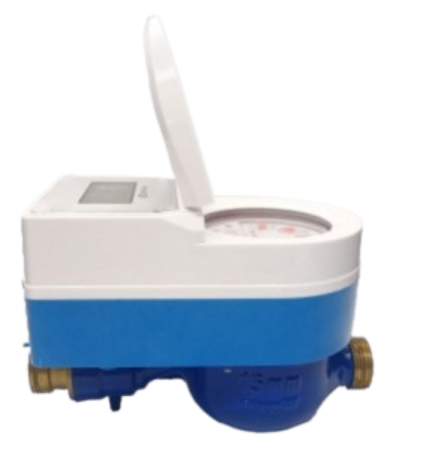

The Zenith IoT Remote Photoelectronic Valve Controlled Water Meter uses optical character wheel recognition technology for accurate, error-free readings with remote valve control capabilities. Featuring automatic valve closure for overdue payments and cost management, it combines IP65 protection with low-power design to deliver over 6 years of battery life while ensuring stable operation in various environments.
This meter supports NB-IoT connectivity with comprehensive alarm functions for low voltage, magnetic interference, arrears, and abnormal usage detection. It integrates with WeChat Mini Program and WeChat Life Payment for convenient data queries and recharging operations. The brass construction and photoelectric direct reading method provide reliable, maintenance-free performance with efficient water management.
Models: DN15, DN20, DN25
Communication: NB-IoT
Power: DC 3.6V Battery (8700mAh ER26500)
Standby Current: ≤5uA
Protection Level: IP65
Base Material: Brass
Sampling Method: Photoelectric Direct Reading
Temperature Level: T30 (Cold), T90 (Hot)
Q3/Q1 Ratio: 100
Electronic Reading: 1-9999
Flow Rates (Q3): 2.5 m³/h (DN15), 4.0 m³/h (DN20), 6.3 m³/h (DN25)
The Zenith IoT Remote Photoelectronic Valve Controlled Water Meter uses optical character wheel recognition technology for accurate, error-free readings with remote valve control capabilities. Featuring automatic valve closure for overdue payments and cost management, it combines IP65 protection with low-power design to deliver over 6 years of battery life while ensuring stable operation in various environments.
This meter supports NB-IoT connectivity with comprehensive alarm functions for low voltage, magnetic interference, arrears, and abnormal usage detection. It integrates with WeChat Mini Program and WeChat Life Payment for convenient data queries and recharging operations. The brass construction and photoelectric direct reading method provide reliable, maintenance-free performance with efficient water management.
Models: DN15, DN20, DN25
Communication: NB-IoT
Power: DC 3.6V Battery (8700mAh ER26500)
Standby Current: ≤5uA
Protection Level: IP65
Base Material: Brass
Sampling Method: Photoelectric Direct Reading
Temperature Level: T30 (Cold), T90 (Hot)
Q3/Q1 Ratio: 100
Electronic Reading: 1-9999
Flow Rates (Q3): 2.5 m³/h (DN15), 4.0 m³/h (DN20), 6.3 m³/h (DN25)
